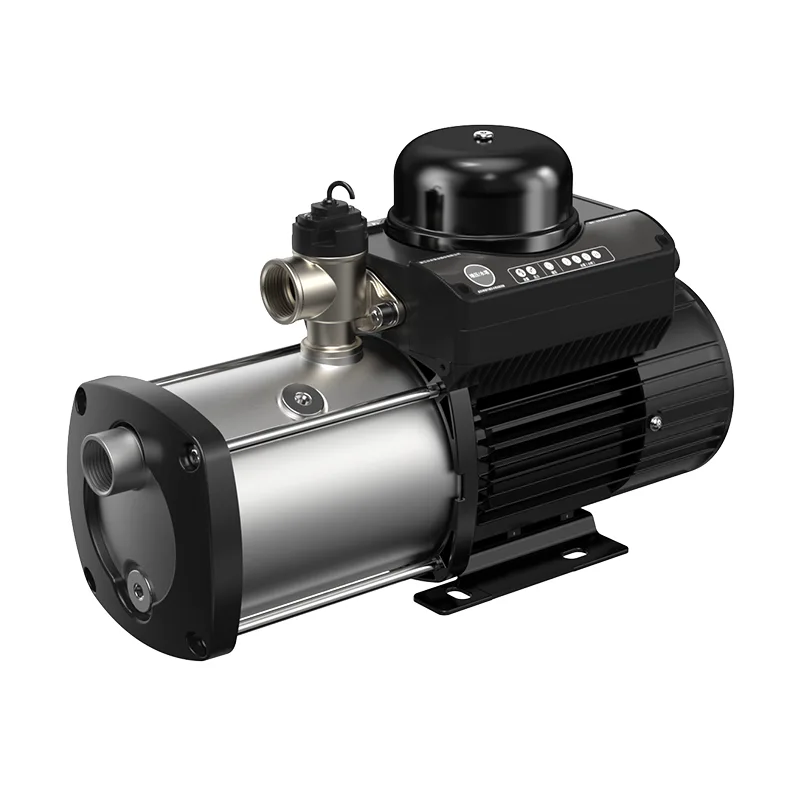

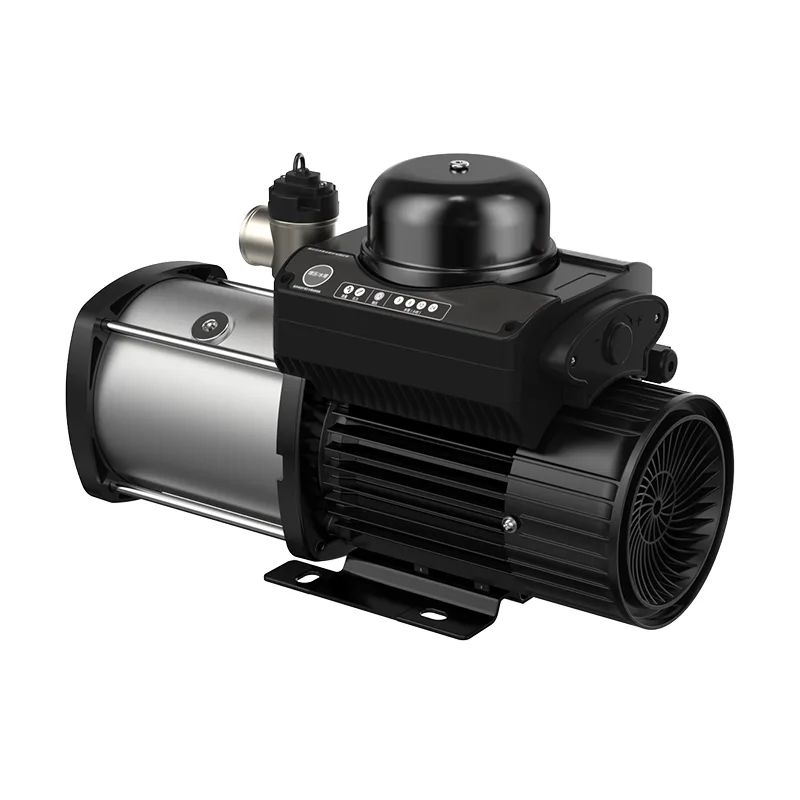

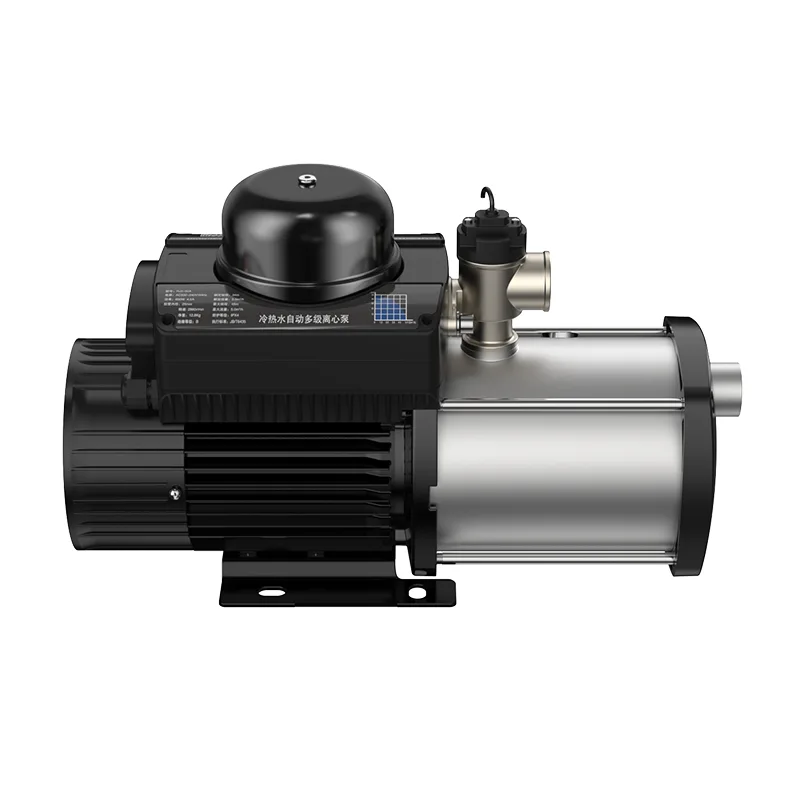

Stainless Steel Multistage Centrifugal Pump
Fosen stainless steel multistage centrifugal pump is made of high-quality stainless steel, which can transport liquids efficiently and stably. It has the advantages of corrosion resistance, rust prevention, energy saving and environmental protection. It is a reliable choice for fluid transmission in various industries.
Send Inquiry
Product Description
RJS3-50A NEW PRODUCT
STAINLESS STEEL MULTISTAGE CENTRIFUGAL PUMP
STAINLESS STEEL MULTISTAGE CENTRIFUGAL PUMP
High Efficiency And Energy Saving
High-efficiency control components are designed to increase pump efficiency and reduce energy consumption.
Quiet And Low Noise
Low-noise design for bearings and fan reduces noise pollution and improves the comfort of the working environment.
Durable And Reliable
The whole pump structure is reasonably designed and imported plastics are used, which can withstand the working environment of high strength and high speed and prolong the service life.
Intelligent Control
Intelligent control technology is adopted to realize remote control and automatic operation of the pump.
Aesthetic Design
Adoption of aesthetically pleasing design improves the appearance quality and visual effect of the pump.
Multifunctional
With advanced safety protection measures, such as overheating protection, overload protection, water shortage protection, water leakage alarm and other functions, to ensure the safety of the product.
Easy To Install
Small size, light weight, easy installation, simple operation, etc., suitable for a variety of narrow space and complex environment.
PARAMETER
| Voltage: 220V | Frequency: 50Hz |
| Liquild: Clean Water | Max suction: 8m |
| Insulation Class: Class B | Protection Class: IPX4 |
| Liquild Temperature: 0-90°C | Ambient Temperature: 0-45°C |
Model Description
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Suction (m) |
Pipe Size (mm) |
Recommend Floor&below |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³h) | (L/min) | (m³/h) | (L/min) | |||||||||||
| FSs3-30A | 220/50 | 400 | 2.7 | 28 | 5.0 | 83.3 | 20 | 3 | 50 | 8 | 25 | 4 | 12.6 | 444x216x315 |
| FSs3-40A | 500 | 3.5 | 37 | 5.0 | 83.3 | 27 | 3 | 50 | 8 | 25 | 5 | 12.9 | 464x210x315 | |
| FSs3-50A | 600 | 4.0 | 45 | 5.0 | 83.3 | 34 | 3 | 50 | 8 | 25 | 7 | 14.0 | 480x210x315 | |
Mounting Dimensions (mm)
| Model | H | L | A | w | c | E |
| FSs3-30A | 264 | 402 | 155 | 125 | 118 | 164 |
| FSs3-40A | 264 | 420 | 155 | 125 | 118 | 164 |
| FSs3-50A | 264 | 438 | 155 | 125 | 118 | 164 |
| Model | H | L | A | w | c | E |
| FST3-30 | 202 | 377 | 155 | 125 | 79 | 155 |
| FST3-40 | 202 | 395 | 155 | 125 | 79 | 155 |
| FST3-50 | 202 | 423 | 155 | 125 | 79 | 155 |
| FST5-30 | 202 | 377 | 155 | 125 | 79 | 155 |
| FST5-40 | 202 | 395 | 155 | 125 | 79 | 155 |
| FST5-50 | 202 | 413 | 155 | 125 | 79 | 155 |
| FST5-60 | 202 | 431 | 155 | 125 | 79 | 155 |
