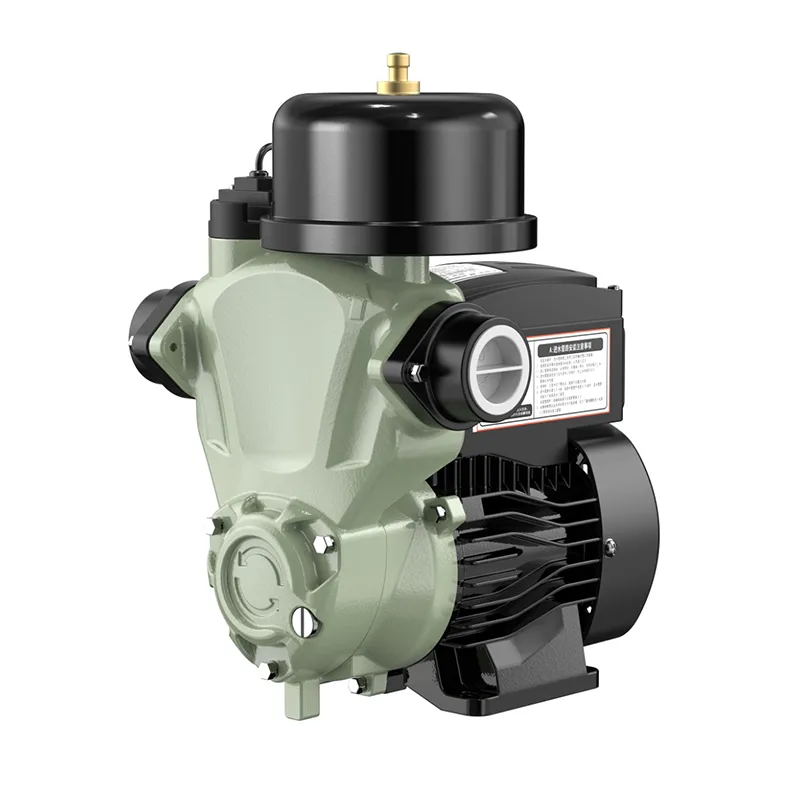

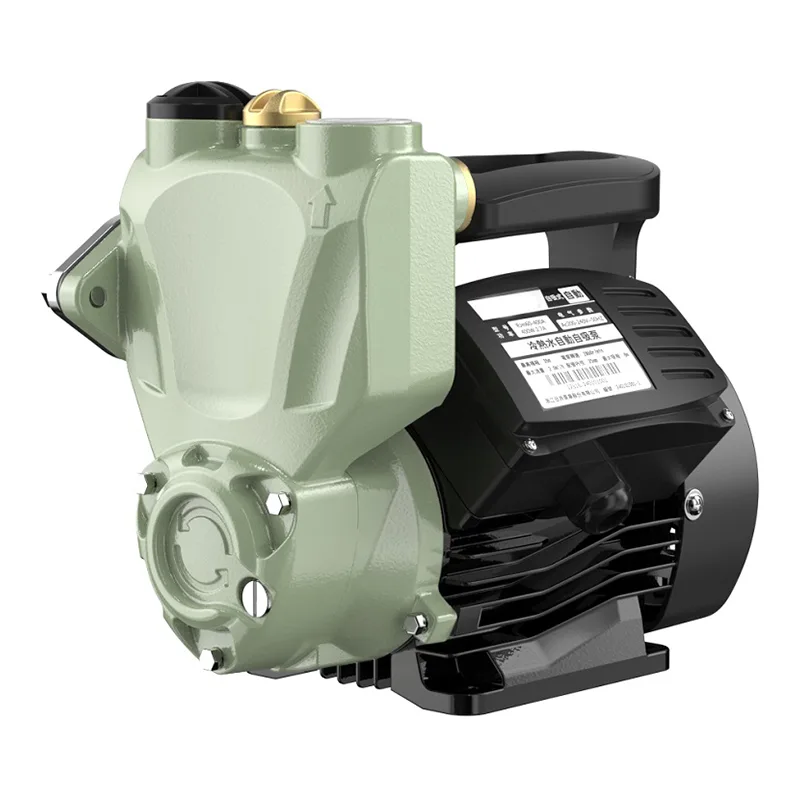

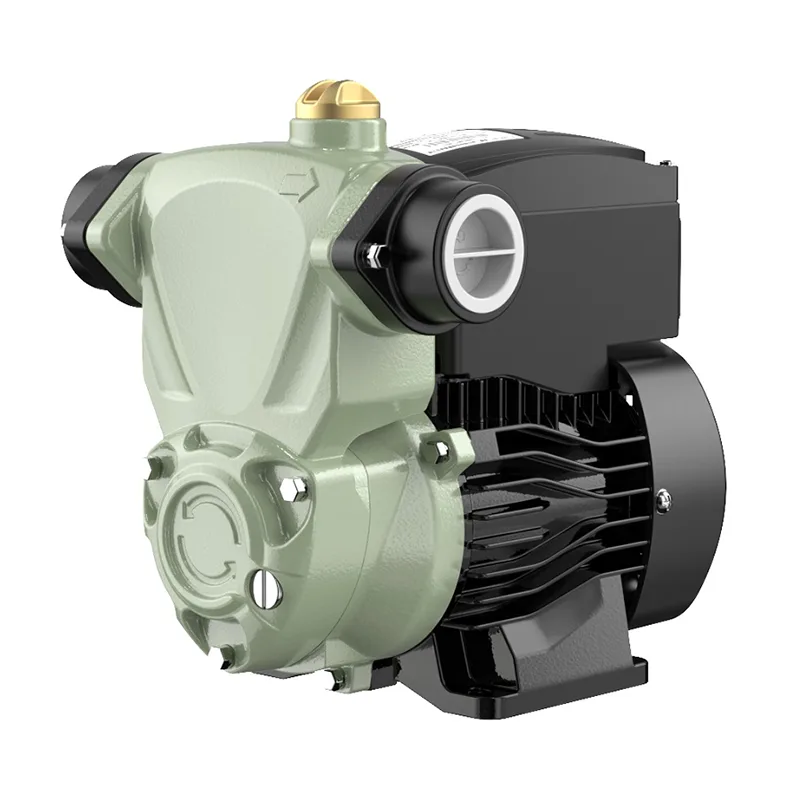

Automatic Self-Priming Pump
Fosen's Automatic Self-Priming Pump combines an automatic control system with stainless steel corrosion-resistant materials to achieve efficient self-priming and unmanned operation. It is suitable for household water supply, industrial applications and other scenarios, providing reliable and stable water flow output, easy maintenance and long service life.
Send Inquiry
Product Description
Automatic Stainless Steel Self-Priming Pump
3 Second Delay Start
When power on, pump will delay the 3s to start, in order to protect the motor and personal safety.
Dry-running Protection
Withing dry-running protection to avoid bearings and shaft seal damaged in dry-running status.
Fully Automatic
Cut off automatically while there is no water pass the inlet 6 minutes later.
Healthy Environmental Protection
Special enamel craft to prevent iron rusty, care your health and the environment.
Machine Lock Protection
Automatically 8 seconds running per 72 hours to remove impurities in case.
Suitable For HotWater Up To +90°C
Private House
In the family homes, well, of independent type and half an independent residential heating technology of convenience, water supply and sewage disposal solution.
Business Building
Be suitable for the public building, office building, hospital, hotel and residential with high profitable efficiency system.
Industrial Application
In commercial and industrial areas, FOSEN provides intelligent solution with the maximum reliability for the entire process of the external equipment.
PARAMETER
| Voltage: 220V | Insulation Class: Class B |
| Frequency: 50Hz | Protection Class: IPX4 |
| Liquild: Clean Water | Liquild Temperature: 0-90°C |
| Max suction: 8m | Ambient Temperature: 0-45°C |
AUTOMATIC SELF-PRIMING PUMP
FLOW SENSOR
Monitor the flow, stop automatically if no water after 6 minutes, and monitor whether there is flow each 1 hour. The reed switch is OKI brand.
PC BOARD
According the feedback from flow sensor and pressure switch to control start, stop and dry-running protection etc.
PRESSURE SWITCH
After set the pressure in the appropriate range, even the pressure reach the setted pressure, the pump wouldn't stop, unless open the tap. The micro switch is Omron brand.
AUTOMATIC SELF-PRIMING PUMP
Model Description
FSm60-128
FSm60-130A
FSm60-400
FSm60-201SA
FSm90-1100SSA
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Suction (m) |
Pipe Size (mm) |
Recommend Floor&below |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³h) | (L/min) | (m³/h) | (L/min) | |||||||||||
| FSm60-128 | 220/50 | 128 | 1.5 | 25 | 1.5 | 25 | 12 | 1.0 | 16.7 | 8 | 25 | 2 | 7.4 | 240x216x231 |
| FSm60-130A | 220/50 | 130 | 1.5 | 25 | 1.8 | 30 | 12 | 1.0 | 16.7 | 8 | 25 | 2 | 9.1 | 290x234x345 |
| FSm60-200(A) | 220/50 | 200 | 2.0 | 25 | 2.3 | 38.4 | 12 | 1.0 | 16.7 | 8 | 25 | 3 | 10.0 | 280x218x295 |
| FSm60-300(A) | 300 | 2.5 | 30 | 2.3 | 38.4 | 13.5 | 1.0 | 16.7 | 25 | 4 | 10.3 | 280x218x295 | ||
| FSm60-400(A) | 400 | 2.7 | 35 | 2.3 | 38.4 | 15 | 1.0 | 16.7 | 25 | 4 | 10.4 | 280x218x295 | ||
| FSm70-600(A) | 600 | 4.2 | 40 | 3.0 | 50 | 22 | 1.5 | 25 | 25 | 6 | 13.6 | 303x240x324 | ||
| FSm80-800(A) | 800 | 5.2 | 50 | 3.5 | 58.5 | 28 | 1.5 | 25 | 25 | 8 | 14.7 | 303x240x324 | ||
| FSm90-1100(A) | 1100 | 8.0 | 50 | 5.5 | 91.9 | 30 | 2.5 | 41.8 | 40 | 10 | 21.2 | 365x270x355 | ||
| FSm90-1500(A) | 1500 | 10.0 | 60 | 6.0 | 100 | 35 | 2.5 | 41.8 | 40 | 12 | 22.6 | 365x270x355 | ||
| FSm90-1100(SSA) | 1100 | 8.0 | 50 | 5.5 | 91.9 | 30 | 2.5 | 41.8 | 40 | 10 | 26.7 | 525x315x650 | ||
| FSm90-1500(SSA) | 1500 | 10.0 | 60 | 6.0 | 100 | 35 | 2.5 | 41.8 | 40 | 12 | 28.5 | 525x315x650 | ||
| FSm60-201SA | 220/50 | 200 | 2.0 | 25 | 2.3 | 38.4 | 12 | 1.0 | 16.7 | 8 | 25 | 3 | 8.8 | 299x221×274 |
| FSm60-301SA | 300 | 2.5 | 30 | 2.3 | 38.4 | 13.5 | 1.0 | 16.7 | 25 | 4 | 9.2 | 299×221×274 | ||
| FSm60-401SA | 400 | 2.7 | 35 | 2.3 | 38.4 | 15 | 1.0 | 16.7 | 25 | 4 | 9.4 | 299x221×274 | ||
◆ The model with "S" means stainless steel self-priming pump
Mounting Dimensions (mm)
| Model | H | L | A | w | c | E |
| FSm60-128 | 204.5 | 213 | 73 | 120 | 152 | 110.5 |
| FSm60-200 | 239 | 258 | 98 | 120 | 148 | 187 |
| FSm60-300 | 239 | 258 |
