Hot Water Circulation Pump
Fosen hot water circulation pump efficiently drives hot water circulation in pipelines, improves thermal energy utilization efficiency, and significantly reduces system energy consumption.
Send Inquiry
Product Description

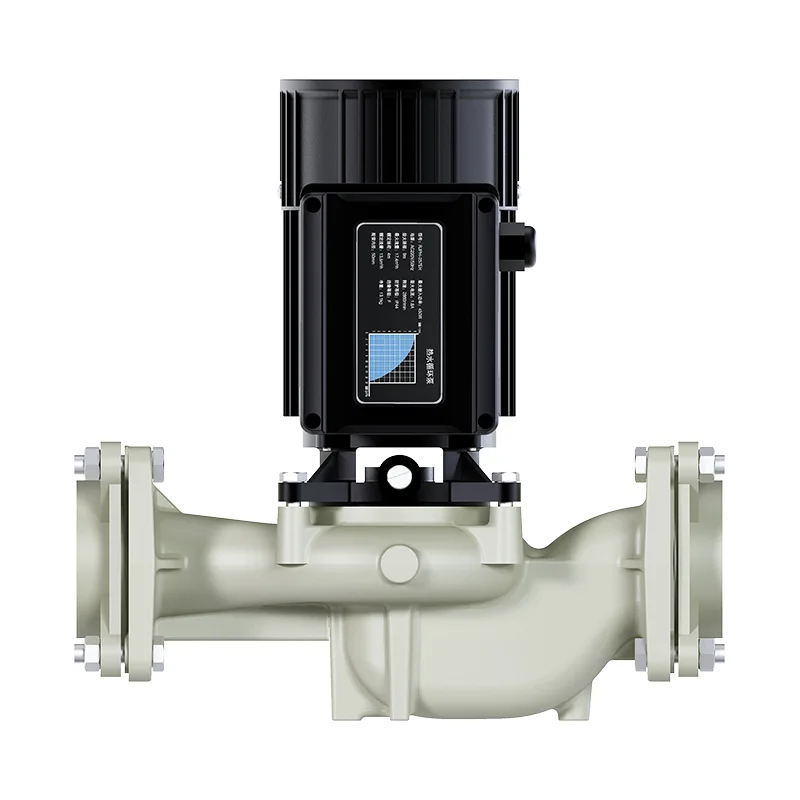

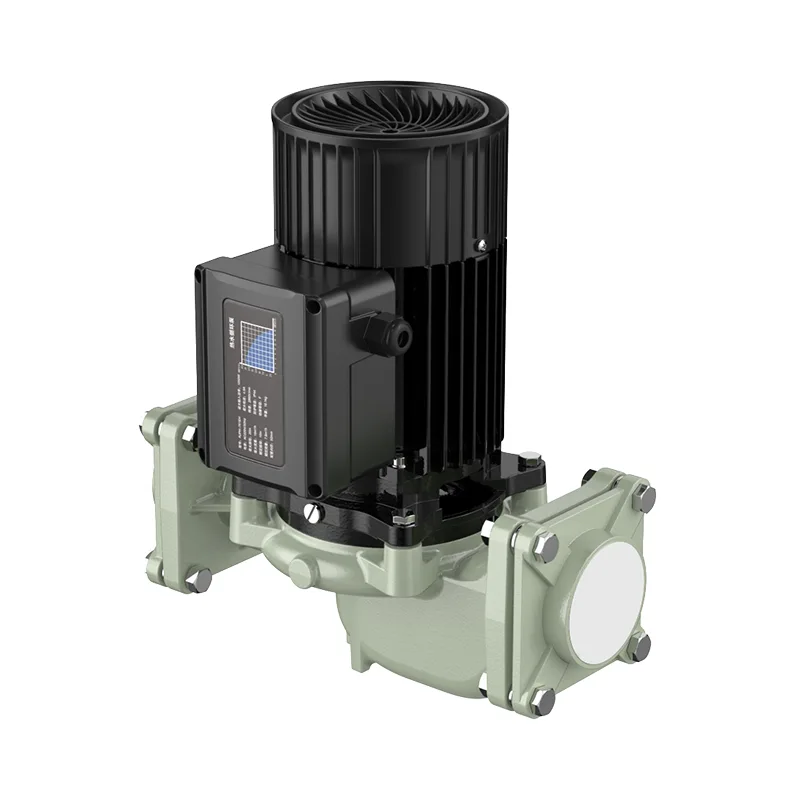

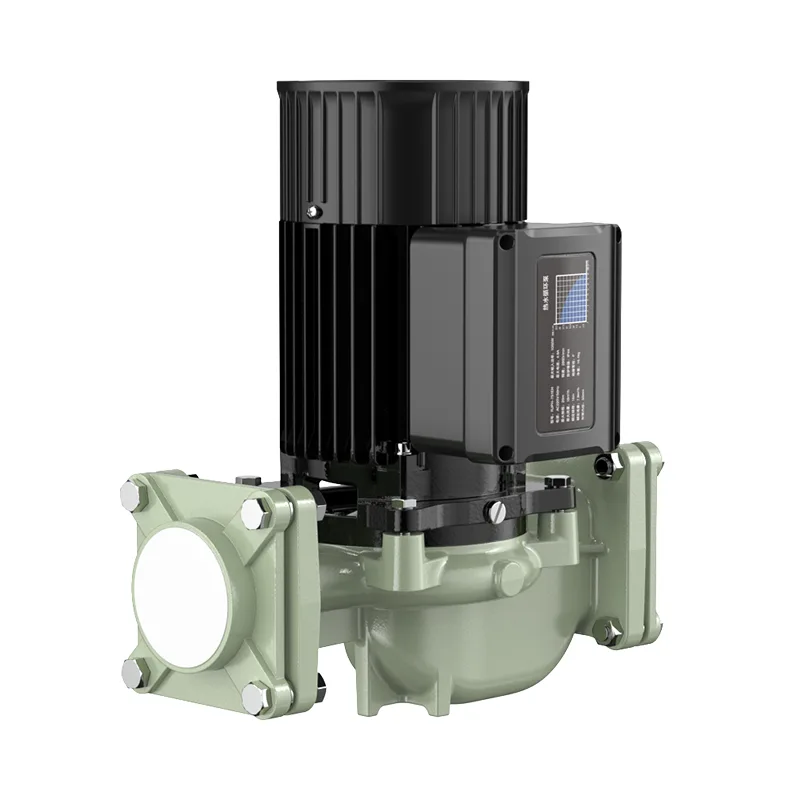

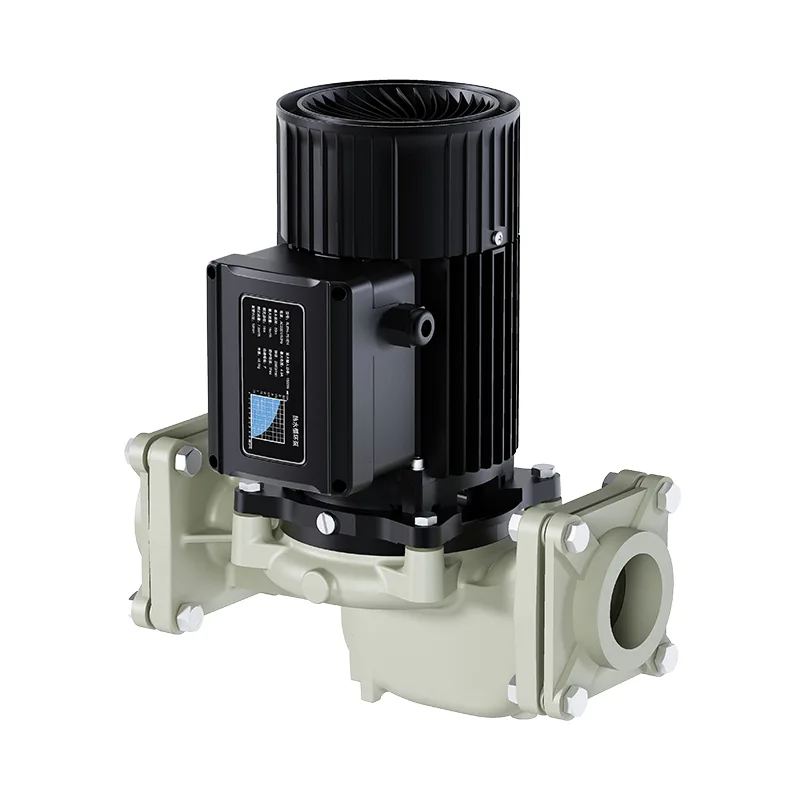

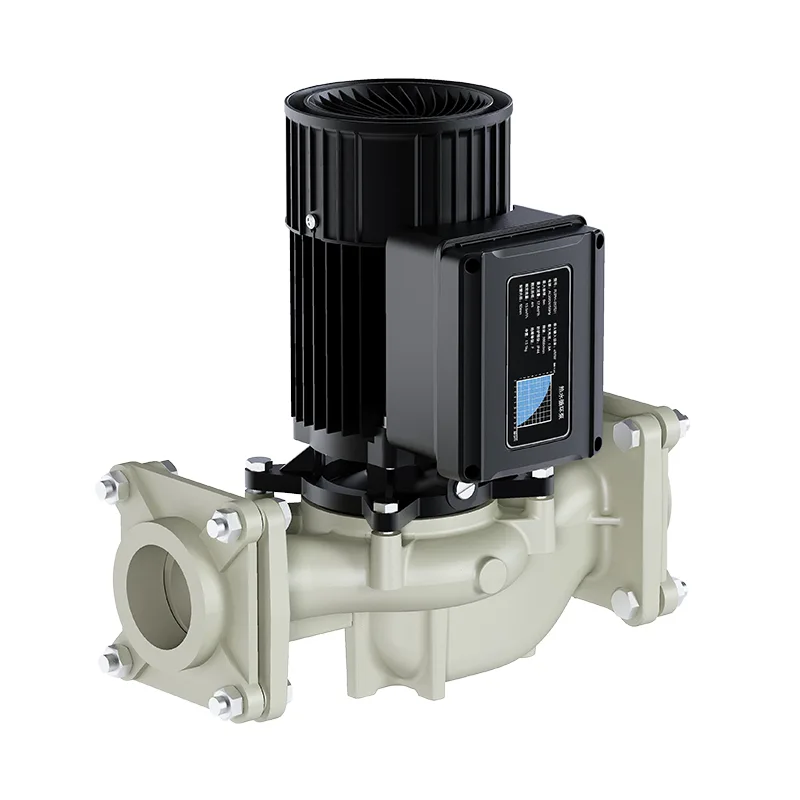

HOTWATER CIRCULATION PUMP
Hot water circulation pumps specially designed for pipeline system, the whole pumps are compact and easy to install. In addition, they have the advantages of high efficiency performance and low noise, it can be installed directly on the pipeline without additional pump room, small footprint, easy to install, widely used in urban water supply, heating, drainage and other fields.
HOTWATER CIRCULATION PUMP
High Temperature Resistant Mechanical Seal
Adoption of high temperature resistant mechanical seals, the use of silicon carbide and graphite, to ensure service life.
Wear Resistant
Adopting imported engineering plastics impeller, low noise and not easily worn out.
Safe And Reliable
The motor is made of 100% copper, class F insulation system, motor built-in thermal protector, overheating protection, overload protection function.
High Temperature Bearing
Front and rear bearings with high temperature bearings, rear bearings with peristaltic bearings.
Electrostatic Powder Coating
The pump body is sprayed with imported plastic powder, cured at high temperature, the color of the product is beautiful and full of newness.
Wide Voltage Design
The motor voltage is 176~264V.
PARAMETER
Voltage: 220V
Frequency: 50Hz
Liquild: Clean Water
Insulation Class: Class F
Protection Class: Ip44
Liquild Temperature: 0-90°C
Ambient Temperature: 0-45°C
Model Description
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Pipe Size (mm) |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³/h) | (L/min) | ( m³/h) | (L/min) | |||||||||
| FSPH-102EH | 220/50 | 220 | 1.3 | 6 | 8.2 | 136.7 | 3 | 5.1 | 85 | 40 | 10.3 | 353x253x235 |
| FSPH-150EH | 270 | 1.5 | 6 | 15 | 250 | 3 | 11.1 | 185 | 50 | 12.15 | 363x303x240 | |
| FSPH-255EH | 360 | 1.7 | 16 | 6 | 100 | 10 | 3 | 50 | 40 | 10.4 | 338x298x233 | |
| FSPH-257EH | 450 | 1.8 | 9 | 17.4 | 290 | 4 | 13.5 | 225 | 50 | 13.6 | 367x324x232 | |
| FSPH-750EH | 950 | 4.5 | 16 | 20 | 333.3 | 10 | 10.8 | 180 | 80 | 18.9 | 393x318x252 | |
| FSPH-751EH | 1050 | 4.9 | 20 | 18 | 300 | 16 | 7.8 | 130 | 50 | 17.1 | 401x320×252 | |
| FSPH-751QH | 380/50 | 900 | 1.6 | 20 | 18 | 300.6 | 16 | 7.8 | 130 | 50 | 16.1 | 401x320×252 |
