Hot & Cold Water Jet Pump
Fosen hot & cold water jet pumps use the principles of fluid dynamics to efficiently mix hot and cold water and increase pressure. They have the advantages of energy saving, environmental protection, stable operation, and precise temperature control.
Send Inquiry
Product Description

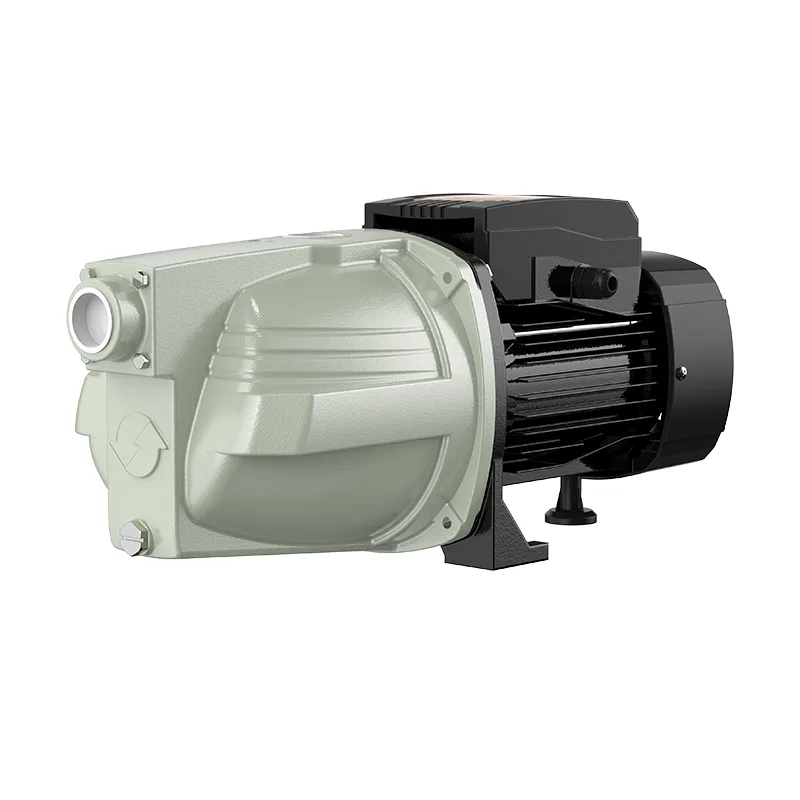

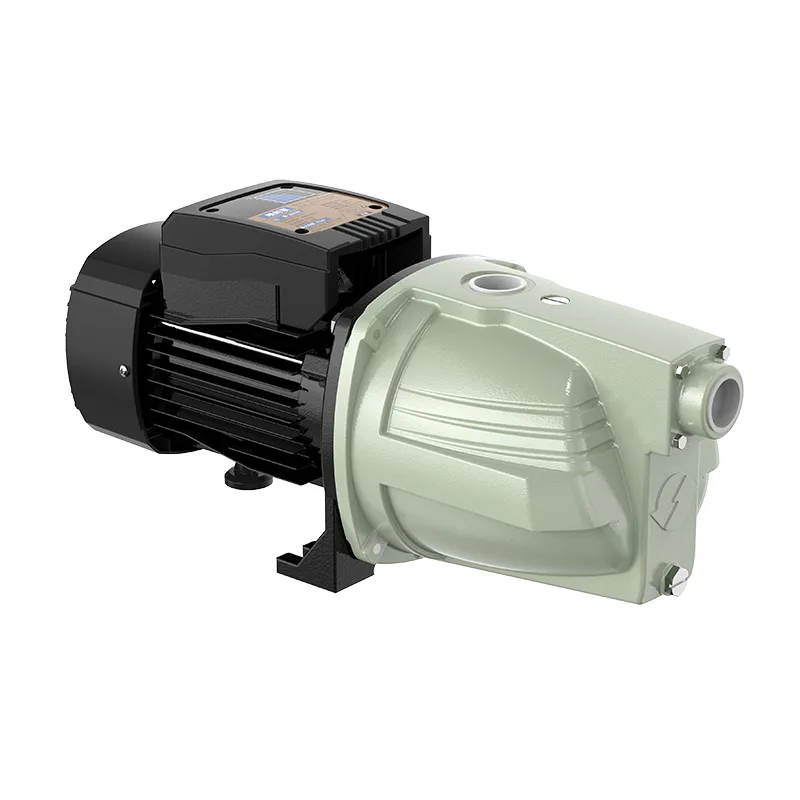

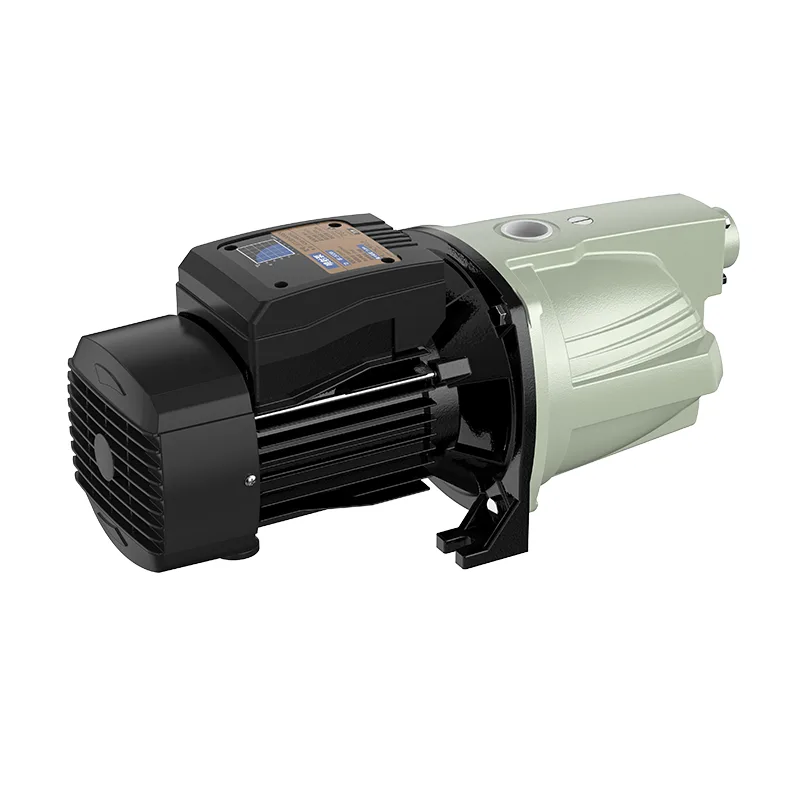

HOT & COLD WATER JET PUMP
Safe and Reliable
The motor is made of 100% copper, F-class insulation, built-in thermal protector, overheating protection, overload protection function.
Electrostatic Powder Coating
The pump body is sprayed with imported plastic powder, cured at high temperature, the color of the product is beautiful and full of newness.
Ultra-high suction range
Suction range of 9.2 meters within 100 seconds.
Wide voltage design
The motor voltage is 176~264V.
HOT&COLD WATER JET PUMP
JET pump offers high pressure for water supply system applied intaking living water pumping well water, boosting household tap water and garden and farm irrigations. It's also suitable to drain water from river and well as well as supplying water for hotel, restaurant and hiah buildings.
River water, well water, boilers, textile industry.
High-rise residential water.
PARAMETER
| Voltage: 220V | Frequency: 50Hz |
| Liquild: Clean Water | Max suction: 9.8m |
| Insulation Class: Class B | Protection Class: IPX4 |
| Liquild Temperature: 0-60°C | Ambient Temperature: 0-45°C |
Model Description
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Suction (m) |
Pipe Size (mm) |
Recommend Floor&below |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³h) | (L/min) | (m³/h) | (L/min) | |||||||||||
| JET130-606LN | 220/50 | 600 | 4.5 | 44 | 3.5 | 41.75 | 24 | 1.8 | 30 | 9.8 | 25 | 4 | 17.6 | 505x206x255 |
| JET130-806LN | 800 | 5.5 | 48 | 3.6 | 60.12 | 25 | 2.4 | 40 | 9.8 | 25 | 6 | 18.9 | 505x206x255 | |
| JET130-1106LN | 1100 | 6 | 58 | 3.6 | 60.12 | 32 | 2.4 | 40 | 9.8 | 25 | 8 | 19.3 | 505x206x255 | |
| JET159-1500LN | 1500 | 10 | 55 | 7 | 116.67 | 40 | 4 | 66.67 | 9.8 | 40 | 12 | 26.5 | 538x240x285 | |
