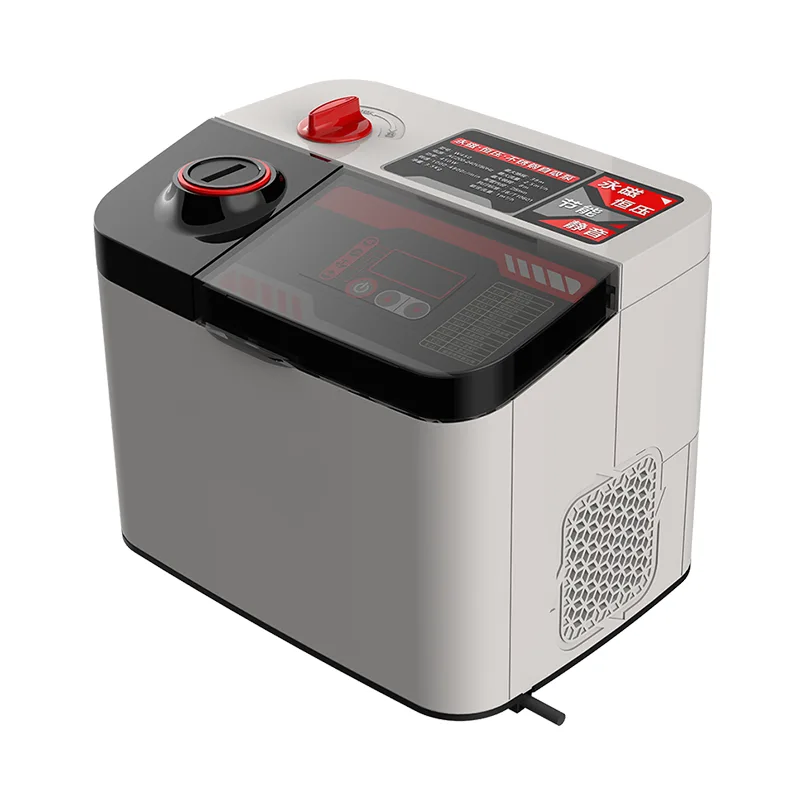

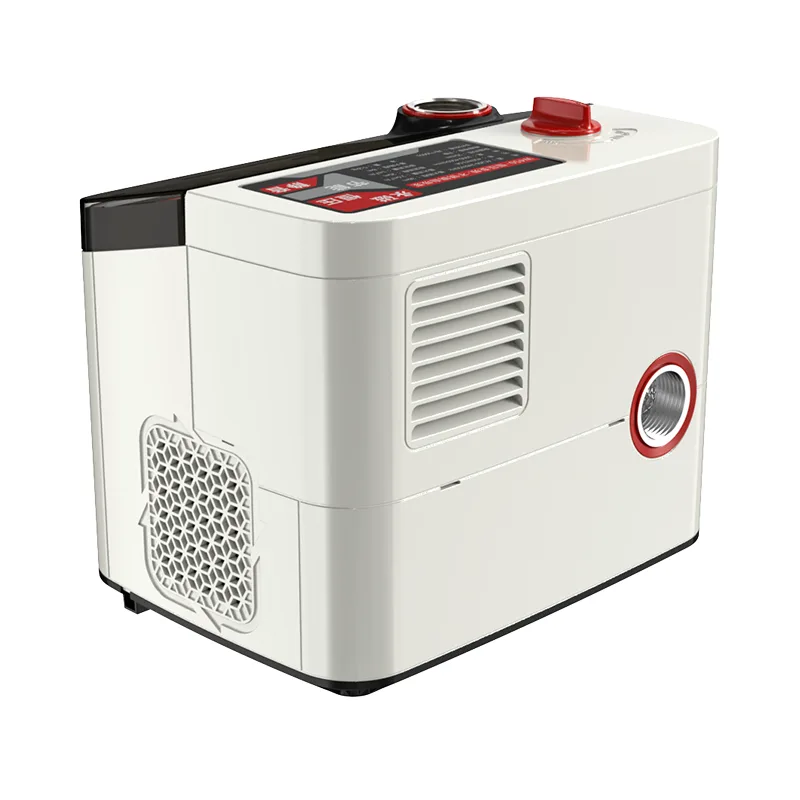

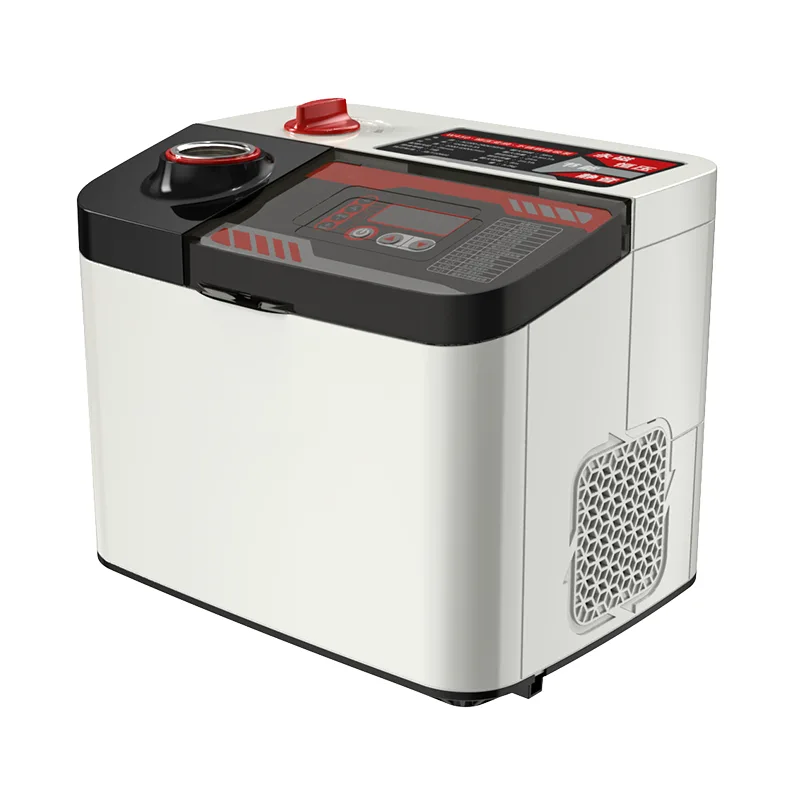

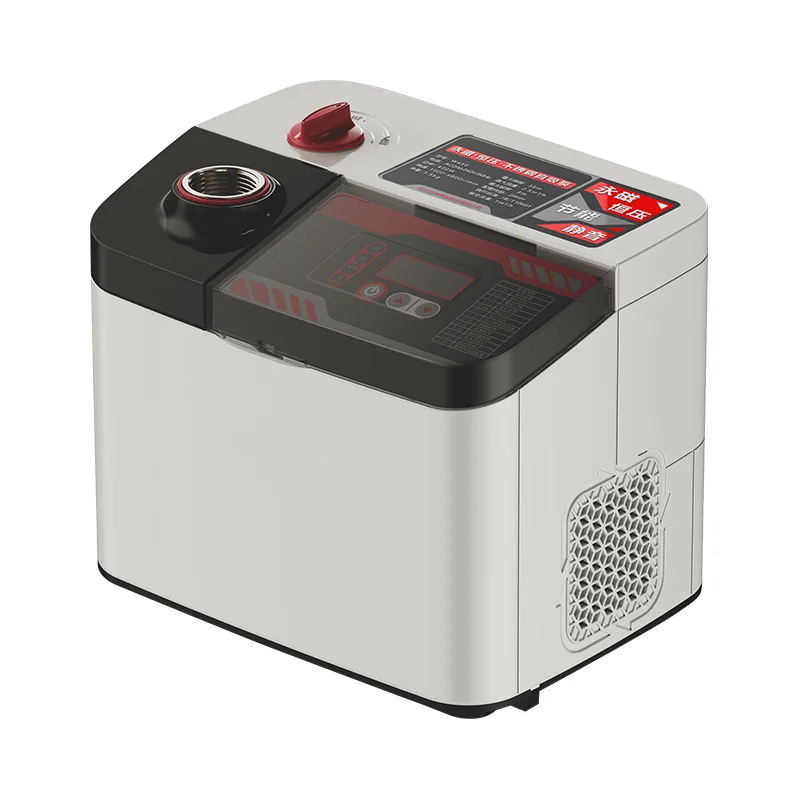

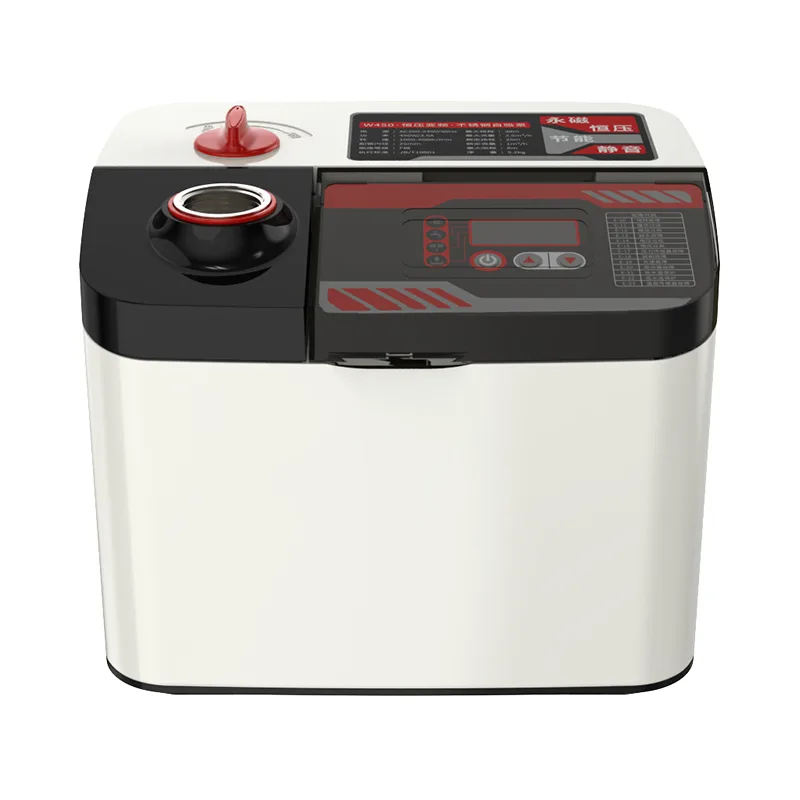

Permanent Magnet Variable Frequency Stainless Steel Self-Priming Pump
Fosen Permanent Magnet Variable Frequency Stainless Steel Self-Priming Pump integrates permanent magnet frequency conversion energy-saving technology and high-quality stainless steel materials. It is not only quiet in operation and energy-efficient, but also has strong self-priming ability. It can be started without watering. It is widely used in agricultural irrigation, industrial circulation and daily water supply systems.
Send Inquiry
Product Description
PARAMETER
Voltage: 220V
Frequency: 50Hz
Liquild: Clean Water
Max suction: 8m
Insulation Class: Class F
Protection Class: IPX4
Liquild Temperature: 0-90°C
Ambient Temperature: 0-50°C
Permanent Magnet Variable Frequency Stainless Steel Self-Priming Pump
Permanent magnet variable frequency stainless steel self- priming pump is a device that combines permanent magnet brushless motor and intelligent control system. A dopting brushless high-speed and efficient motor, intelligent frequency conversion and constant voltage speed regulation are achieved, which is energy-saving and efficient, and can maintain the stability of water pressure.
Model Description
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Suction (m) |
Pipe Size (mm) |
Recommend Floor&below |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³h) | (L/min) | (m³/h) | (L/min) | |||||||||||
| W400 | 220/50~60 | 400 | 3 | 33 | 2.5 | 41.7 | 20 | 1 | 16.7 | 8 | 25 | 4 | 6 | 330x245x276 |
| W600 | 600 | 3.5 | 38 | 2.5 | 41.7 | 25 | 1.5 | 25 | 8 | 25 | 6 | 6.5 | 330x245x276 | |
| W800 | 800 | 5.2 | 45 | 3.5 | 58.4 | 30 | 2 | 33.4 | 8 | 25 | 8 | 8 | 340x264x328 | |
| W1100 | 1100 | 8 | 50 | 5 | 83.5 | 30 | 3 | 50.1 | 8 | 40 | 10 | 13.5 | 380x280x380 | |
| W1500 | 1500 | 10 | 60 | 6 | 100 | 40 | 4 | 66.8 | 8 | 40 | 12 | 15 |
380x280x380 |
|
