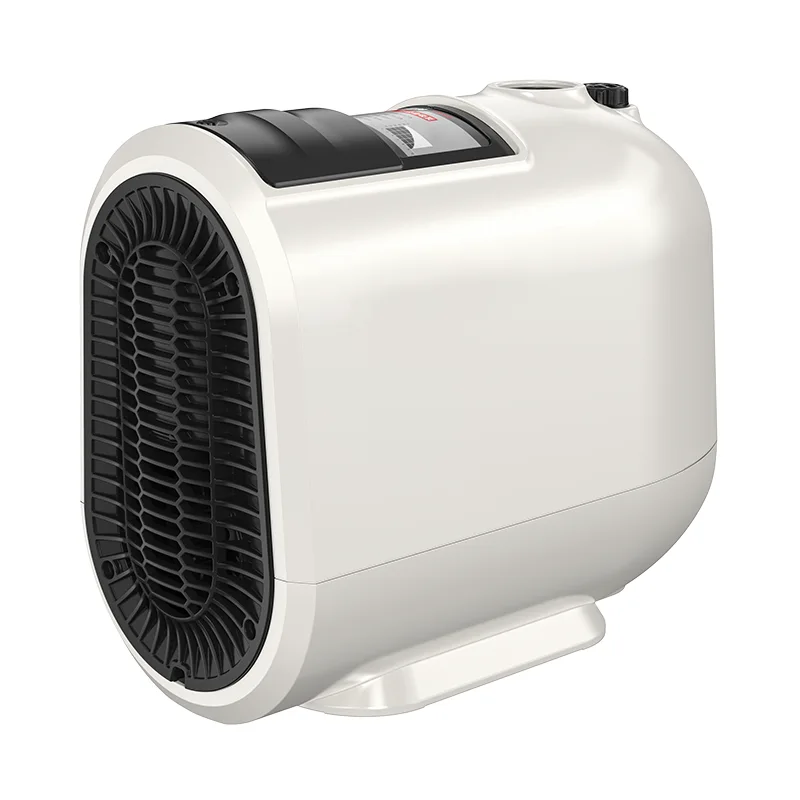

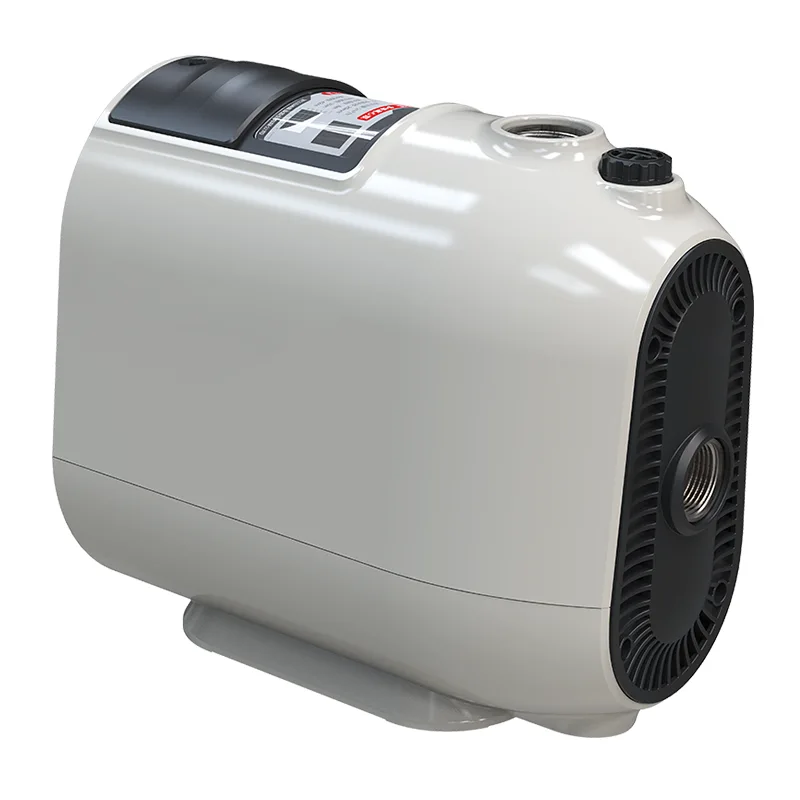

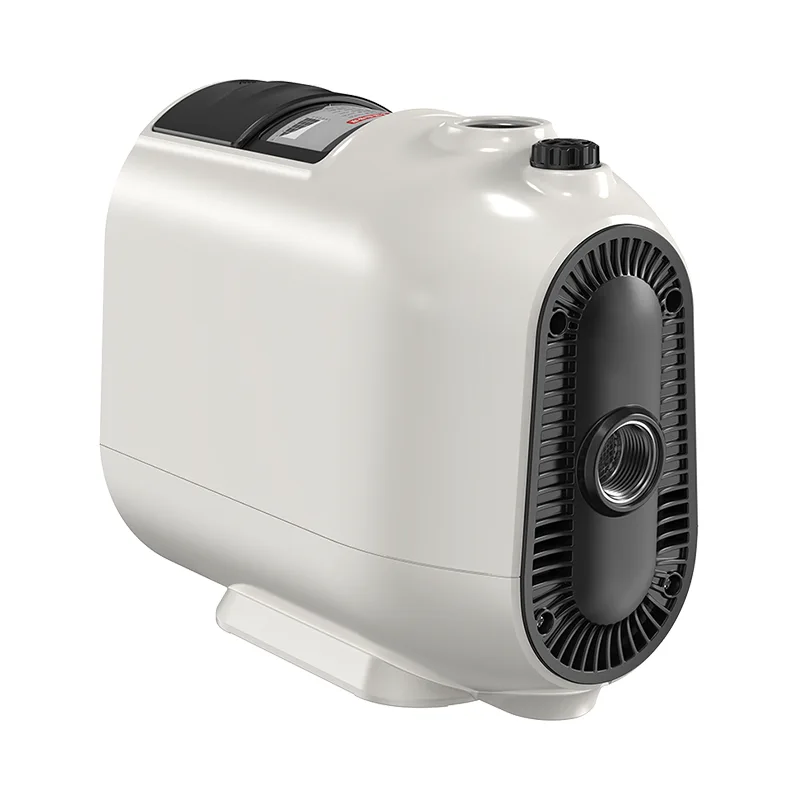

Permanent Magnet Variable Frequency Booster Pump
Fosen permanent magnet variable frequency booster pump adopts permanent magnet variable frequency technology, which has the characteristics of energy saving, quietness and high efficiency. Intelligent control ensures stable water pressure and meets various water needs.
Send Inquiry
Product Description
PERMANENT MAGNET
VARIABLE FREQUENCY BOOSTER PUMP
PERMANENT MAGNET VARIABLE FREQUENCY BOOSTER PUMP
Permanent Magnet Variable Frequency Booster Pump is a kind of high-efficiency and energy-saving pump product, which adopts permanent magnet motor and frequency conversion control technology, featuring high efficiency, occasions that need to adjust the flow rate frequently, such as household water, building water supply, air-conditioning water circulation and other fields.
PARAMETER
Voltage: 220V
Frequency: 50-60Hz
Liquild: Clean Water
Insulation Class: Class B
Protection Class: IPX4
Liquild Temperature: 0-90°C
Ambient Temperature: 0-45°C
Model Description
Product Performance Chart
Product Parameter
| Model |
Voltage (V/Hz) |
Power (w) |
Current (A) |
Max.Head (m) |
Max.Flow |
Rated Head (m) |
Rated Flow |
Pipe Size (mm) |
Recommend Floor&below |
Gross Weight (kg) |
Carton Size (mm) |
||
| (m³h) | (L/min) | (m³/h) | (L/min) | ||||||||||
| R2-20 | 220/50~60 | 400 | 3 | 30 | 4.5 | 75.2 | 20 | 2 | 33.4 | 25 | 4 | 6.7 | 359x229x328 |
| R2-30 | 600 | 4.5 | 42 | 5 | 83.5 | 30 | 2 | 33.4 | 25 | 6 | 7.1 | 359x229x328 | |
| R3-30 | 800 | 6 | 42 | 5.5 | 91.9 | 32 | 3 | 50.1 | 25 | 6 | 7.1 | 359x229x328 | |
